6 Rolls Strong Welded Galvanized Concrete Weight Coating Mesh For Offshore Oil
Welded Galvanized Wire Concrete Weight Coating Mesh Description:
Concrete Weight Coating Mesh is one kind of our Welded mesh product. It is also known as pipeline coating mesh which is widely used as reinforcement on concrete weight coating pipelines for oil and gas. It is designed to provide negative buoyancy and mechanical protection for pipelines in subsea and wet environments. It helps the pipeline sink to the ocean floor and remain in position on the seabed, prevents the pipeline from being damaged during installation and after it is in place.
Welded Galvanized Wire Concrete Weight Coating Mesh Specifications:
| Product Name | Concrete weight coating mesh |
| Brand Name | REINFORCE |
| Place of Origin | Hebei, China |
| Mesh Type | Point Welded |
| Processing Service | Wire drawing, galvanizing, welding |
| Wire Diameter | 2.0mm-2.7mm |
| Line Wire Quantity | 6 lines, 8 lines, 10 lines |
| Hole Size | 25.4mm x 67mm |
| Width Per Roll | 190.5mm |
| Zinc Coated | 100g/m2-260g/m2 |
| Hardness Range | 485N/mm2~650N/mm2 |

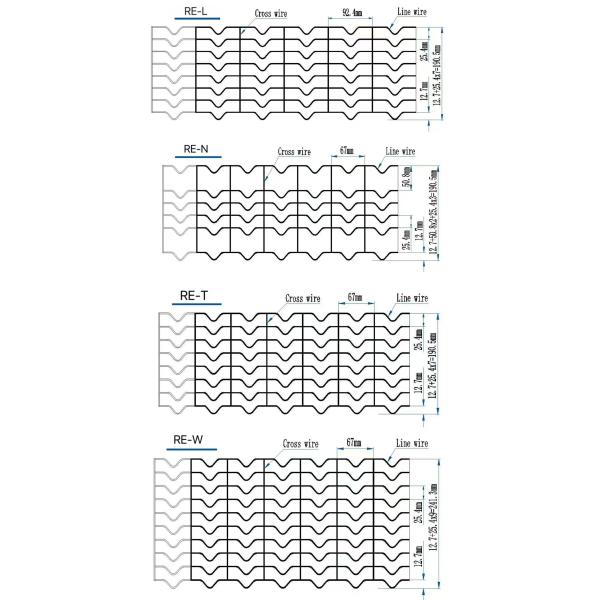

Welded Galvanized Wire Concrete Weight Coating Mesh Four Types:
Welded Galvanized Wire Concrete Weight Coating Mesh Production Processing:
Welded Galvanized Wire Concrete Weight Coating Mesh Features:
- High quality construction with standard specifications
- Precise, uniform hole sizes for consistent performance
- Excellent anti-rust and anti-corrosion properties
- Strong welded points and high tensile strength
- Long service life with easy installation and storage
- Customizable roll lengths to meet project requirements
- Robust packaging options for secure shipping
Welded Galvanized Wire Concrete Weight Coating Mesh Application:
This technique is highly effective in preventing corrosion in water distribution systems, sewage treatment plants, and desalination facilities. Concrete weight coating lining with wire mesh safeguards pipelines in chemical plants, refineries, and petrochemical facilities, protecting them from aggressive chemicals and corrosive substances. Pipeline reinforced mesh used in mining operations and ore processing plants can benefit from the exceptional corrosion resistance provided by CWC lining with wire mesh.
Precautions for using Welded Galvanized Wire Concrete Weight Coating Mesh:
- Before storing or using the steel mesh, store it in a dry, rain-proof area to avoid exposure to water and moisture.
- When transporting and unloading the mesh using a forklift, avoid scratching the mesh with the forklift's tines. This can cause deformation and damage to the mesh, complicating and impacting construction.
- Operators must wear necessary protective gear during construction.
Our company profile:
Our company has 6 sets of the world's most advanced complete wire mesh welding production lines, with an annual production capacity of more than 5 million square meters, and is equipped with a complete set of testing equipment such as tensile testing machines, bending testing machines, and galvanized testing ensure that the products meet domestic and international relevant quality and standard requirements.
